micro:Maqueen Lite + micro:Gamepad is a kit of micro:Maqueen Lite and micro:Gamepad. The perfect combination of smart robot car and remote controller. Powered by BBC micro:bit. Fully programmable and include lots of features. Includes line patrol, ambient light, LED lights, ultrasonic sensor, servo, buzzer, and more!

Includes

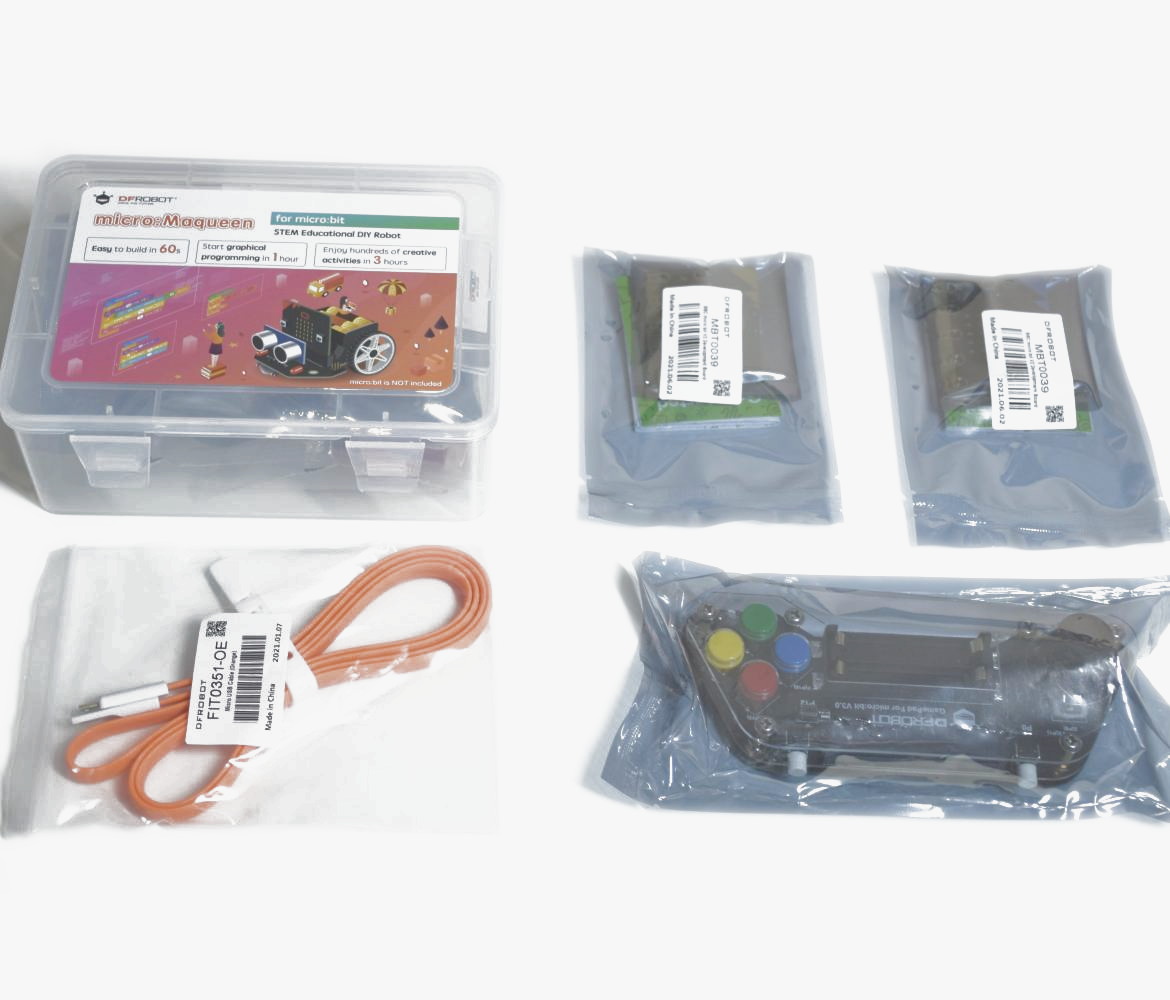

This product includes:

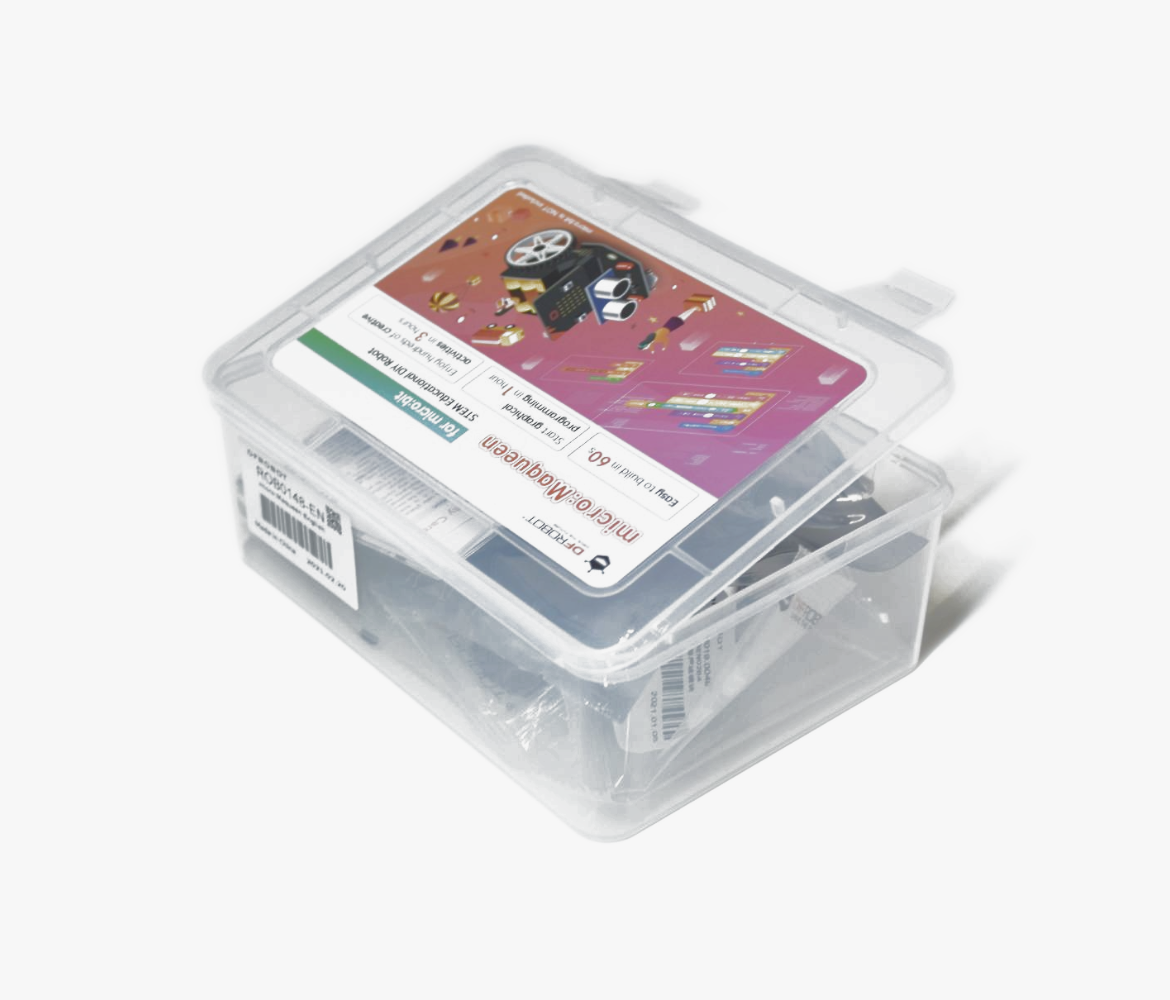

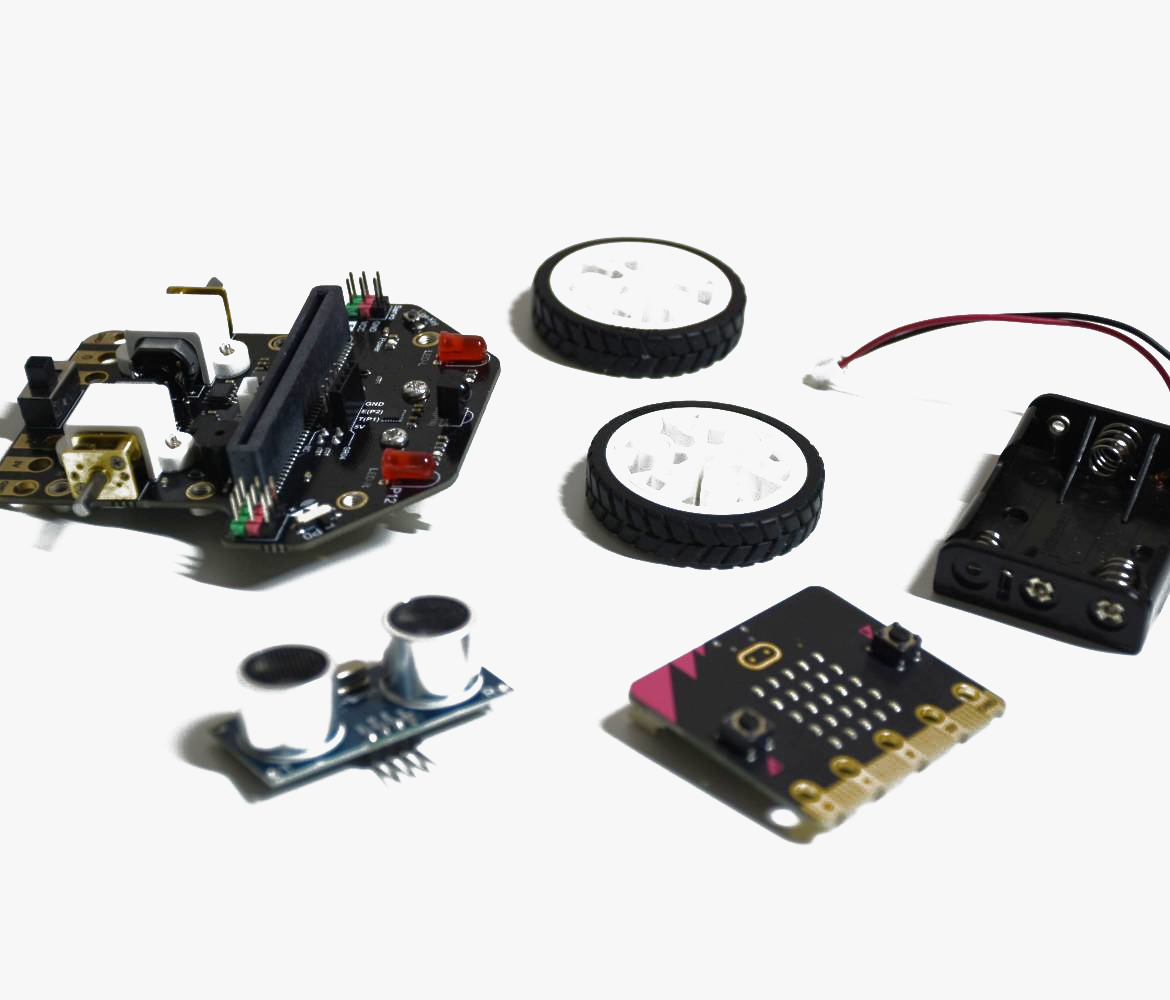

• ×1 - micro:Maqueen Lite kit
  • ×1 - Car body
  • ×2 - Wheel
  • ×1 - Three AAA batteries box
  • ×1 - Double-sided adhesive tape
• ×1 - micro:Gamepad
• ×2 - BBC micro:bit V2

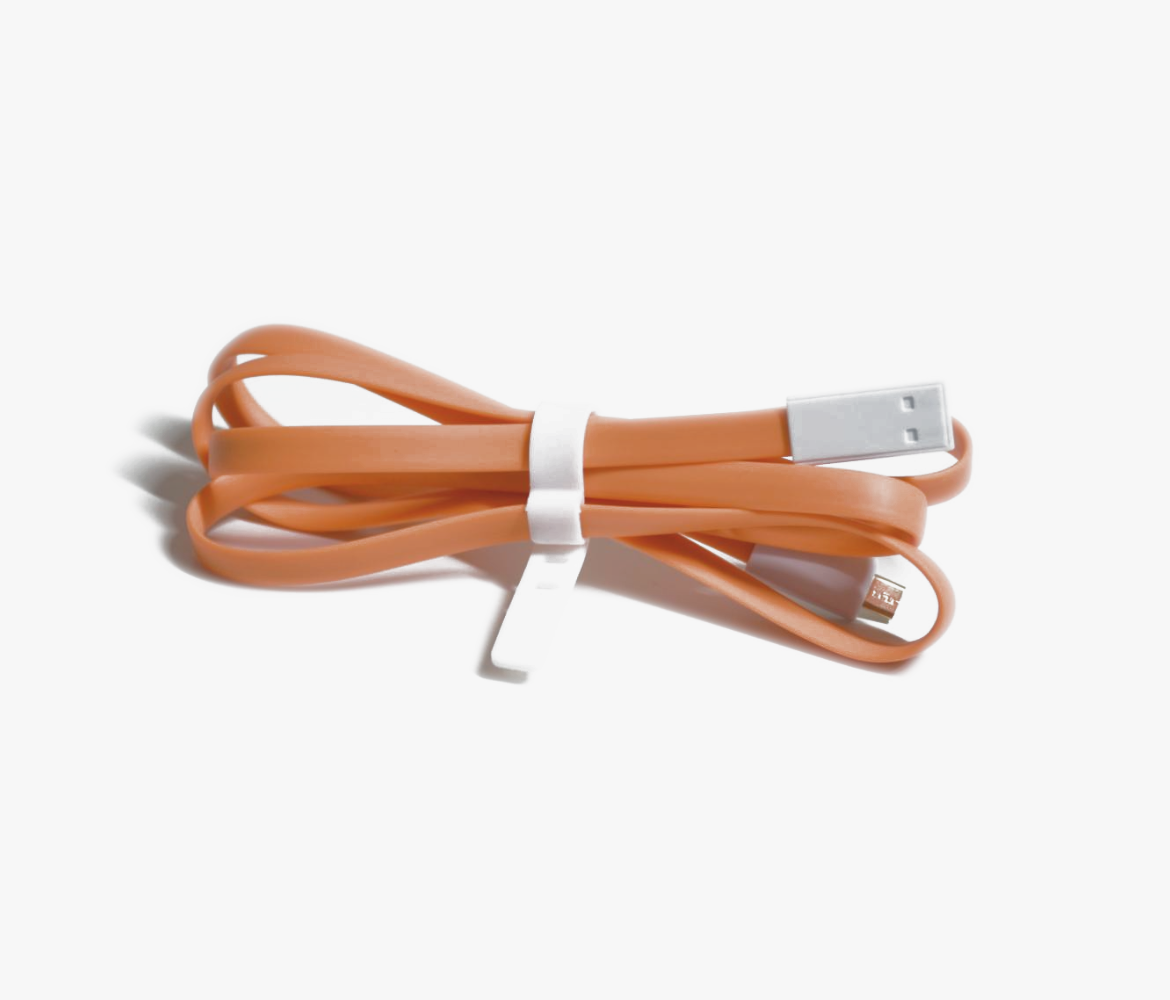

• ×1 - BBC micro:bit USB cable
• User guide and code samples

Resources

Unboxing & Assembling:

https://www.youtube.com/watch?v=TDrCGxqi-SE

Code Samples

All code samples below are hosted on Microsoft Makecode. Code samples are well commented and easy-to-follow. However, if you still have questions on code samples, feel free to contact us using Contact Us page on our website. If code sample contains two code file for sender end and receiver end, sender end should be micro:Gamepad while receiver end should be micro:Maqueen.

Code sample #1 - remote movement control

Blocks:

[sender end] - https://makecode.microbit.org/_1AiEaA4hWK9J

[receiver end] - https://makecode.microbit.org/_AbRVF1dFqPzC

JavaScript:

[sender end] - https://makecode.microbit.org/_c5mRXHUXMi2D

[receiver end] - https://makecode.microbit.org/_2xR3rq87hRh1

Python:

[sender end] - https://makecode.microbit.org/_Ag5U5UbwH1od

[receiver end] - https://makecode.microbit.org/_KEh6cUKuTHPv

Code sample #2 - driving mode control

JavaScript:

[sender end] - https://makecode.microbit.org/_HfqfjXTaqM37

[receiver end] - https://makecode.microbit.org/_CoqPgA3W1cjP

Specification

micro:Maqueen Lite:

• ×2 - Infrared Grayscale Sensor (high-low level)
• ×1 - Buzzer
• ×1 - Infrared Receiver (NEC decoder)
• ×2 - LED Lights (high-low level control)
• ×4 - RGB Ambient Light
• ×1 - SR04, SR04P Ultrasonic Interface (5V)
• ×1 - IIC Interface (3.3V)
• ×2 - Servo Interface
• ×3 - Gravity Extension Interfaces
• ×6 - Bracket and Protective Cover Extension M3 Screw Hole
• ×2 - N20 All-metal Gear Motor
• Motor Reduction Ratio: 1:150
• Maximum Rotate Speed: 133 rpm
• Motor Drive Mode: PWM motor drive
• Supply Voltage: 3.5V-5V DC
• Dimension: 81 x 85 x 44 mm / 3.19 x 3.35 x 1.73 in
• Weight: 75.55g

micro:Gamepad:

• ×1 - Joystick
• ×4 - Large Buttons (button C, D, E, F)
• ×2 - Small Buttons (button A, B)
• ×1 - Vibration Motor
• ×1 - Buzzer
• ×1 - Acrylic Floor
• ×1 - Acrylic Panel
• ×1 - Battery Box
• ×6 - Copper Cylinder
• ×12 - Screw
• Supply Voltage: 3V DC
• Dimension: 148 × 57 mm / 5.83 × 2.24 in
