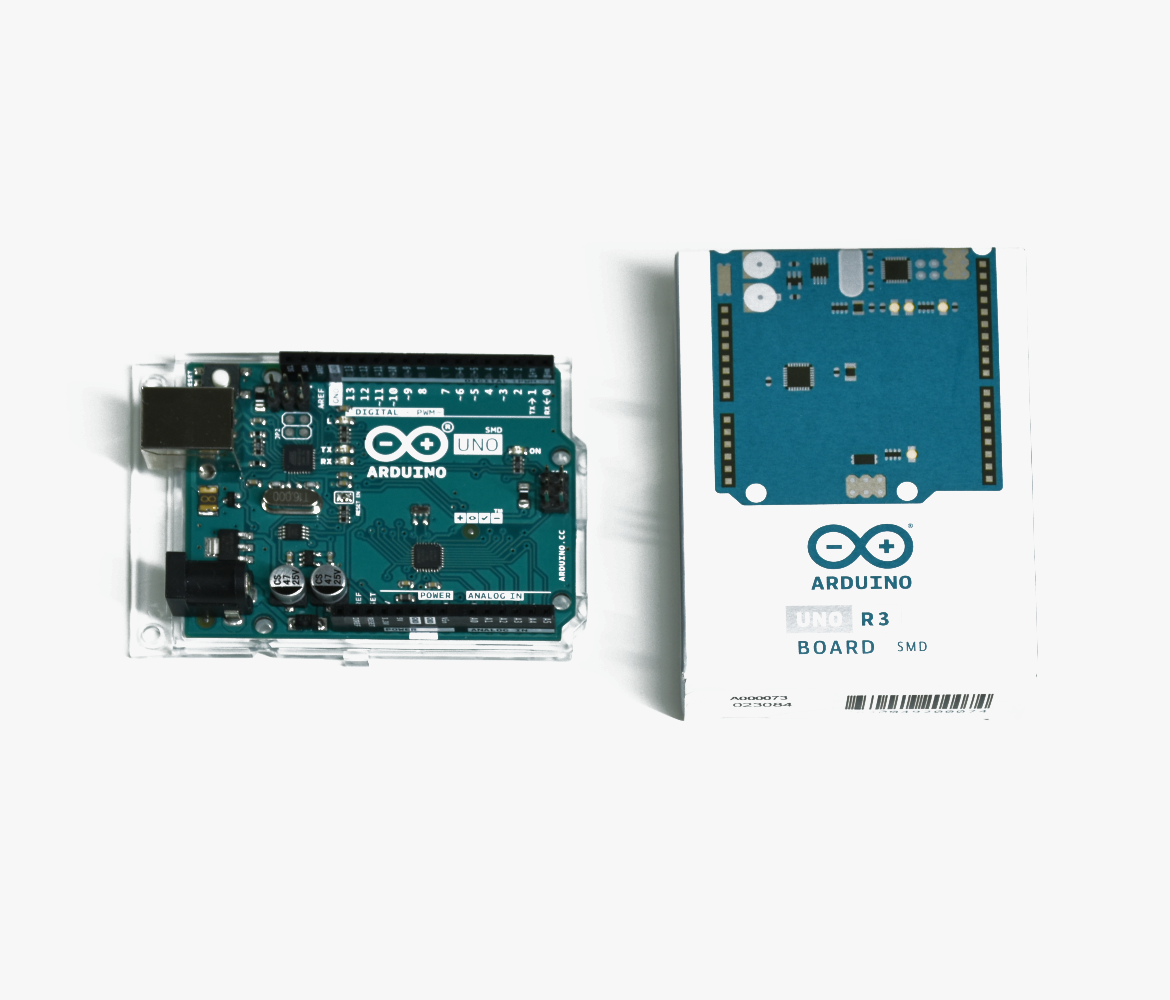

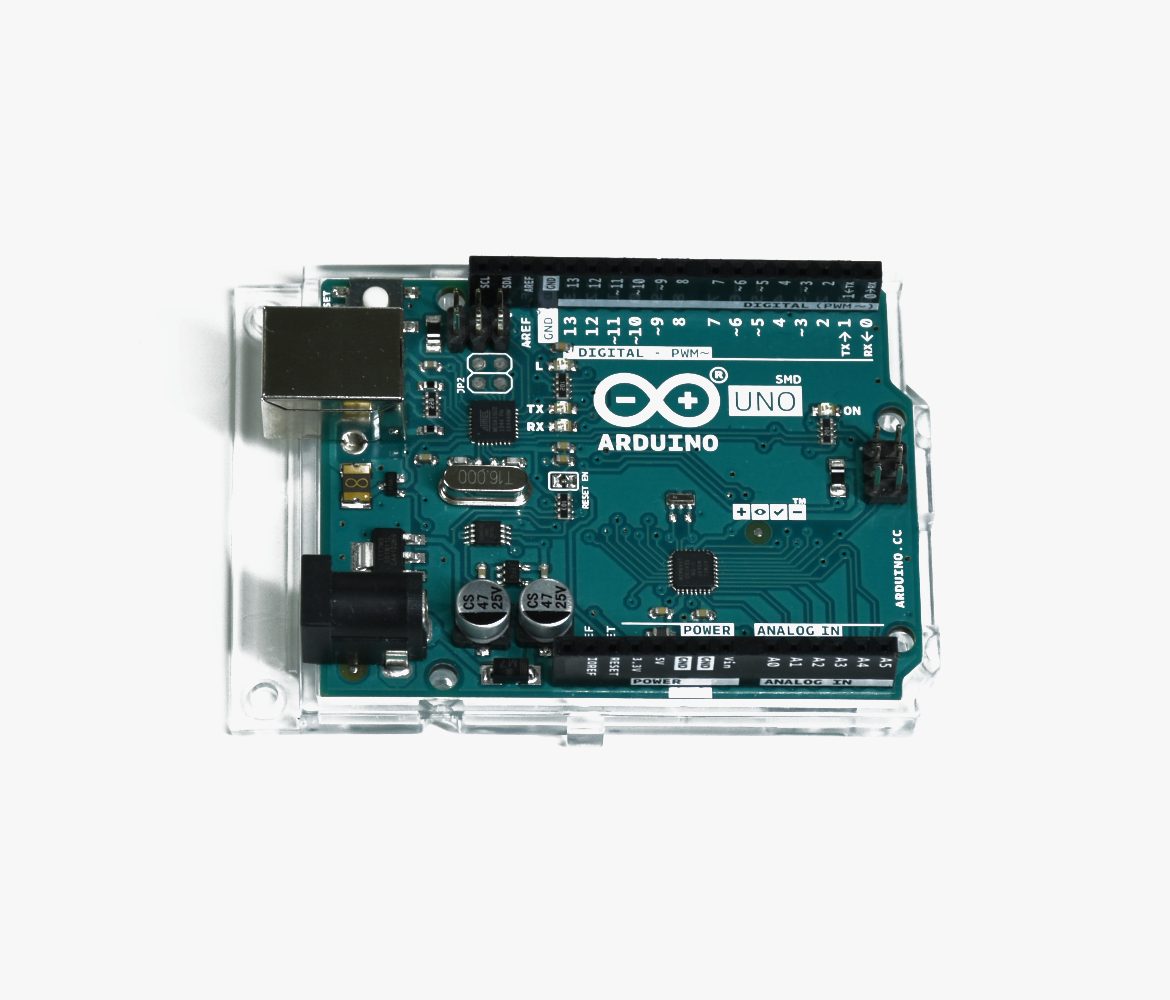

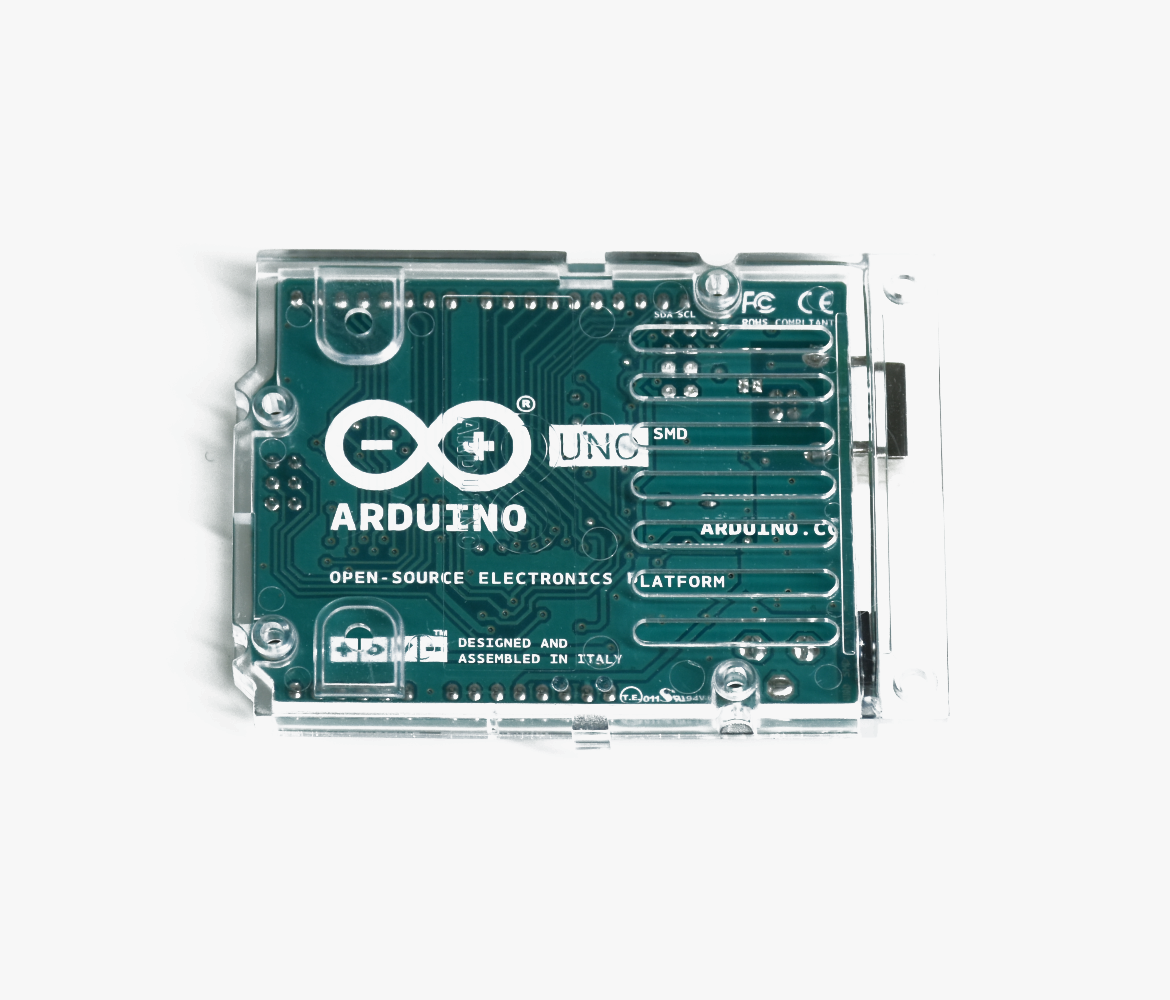

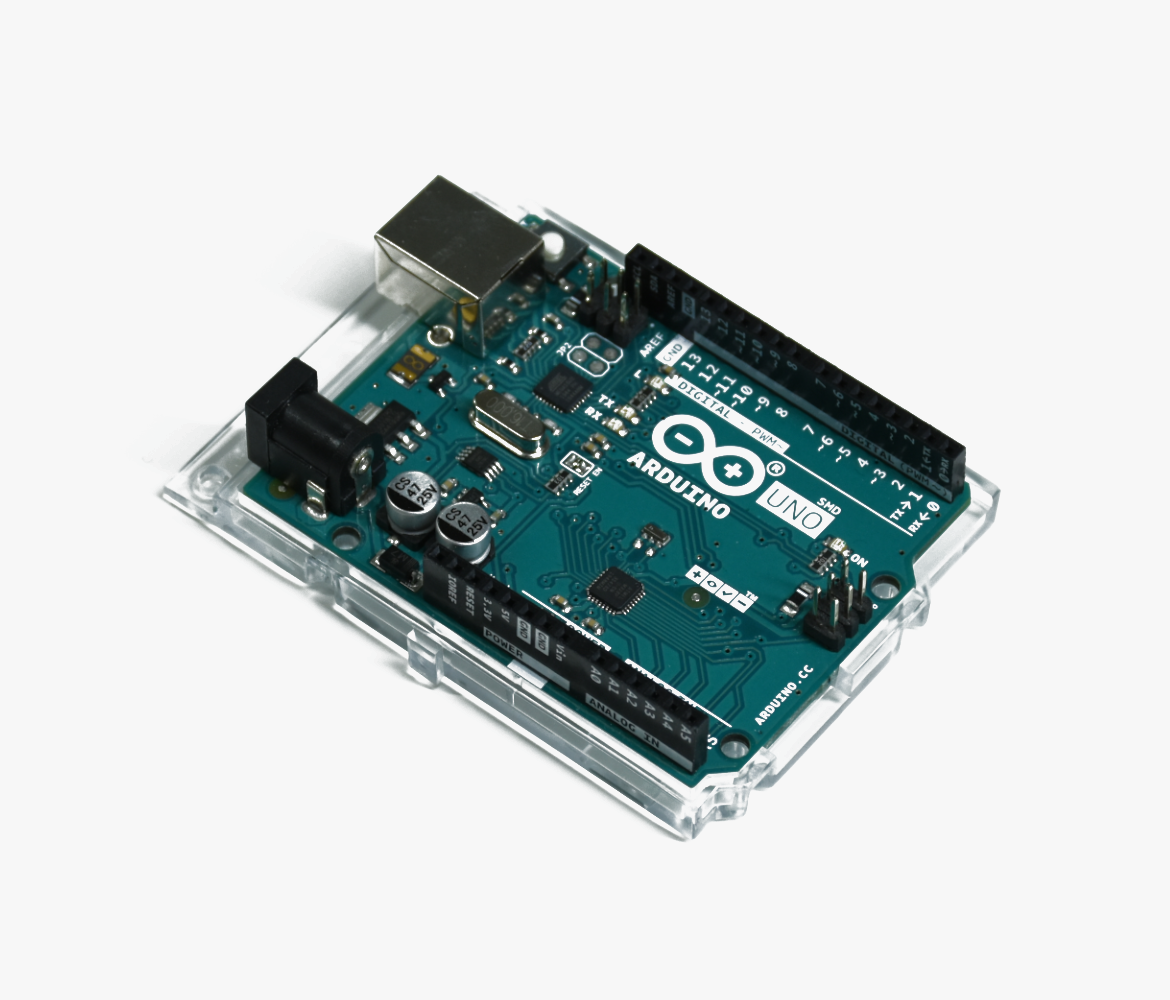

Arduino UNO R3 is a microcontroller board based on ATmega328P. Features 14 digital input/output pins, 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP connector and a reset button. Contains everything needed to support the microcontroller. Just connect it to the computer with a USB cable or use an AC-DC adapter or battery to power it and start using it.

Includes

This product includes:

• ×1 - Arduino UNO R3
• ×1 - Arduino stickers sheet

Specification

Arduino UNO R3:

• ×1 - ATmega328P Microcontroller
• ×14 - Digital I/O Pins
• ×6 - PWM Digital I/O Pins
• ×6 - Analog Input Pins
• ×13 - Builtin LED
• DC Current per I/O Pin: 20 mA
• DC Current for 3.3V Pin: 50 mA
• Flash Memory: 32 KB
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz
• Operating Voltage: 5V
• Input Voltage: 6-20V
• Length: 68.6 mm
• Width: 53.4 mm
• Weight: 25 g
